Night area dwg 33
Dwg file at 1:100 scale (meters)
Please note:
Registered users can view an enlarged preview. Register here!

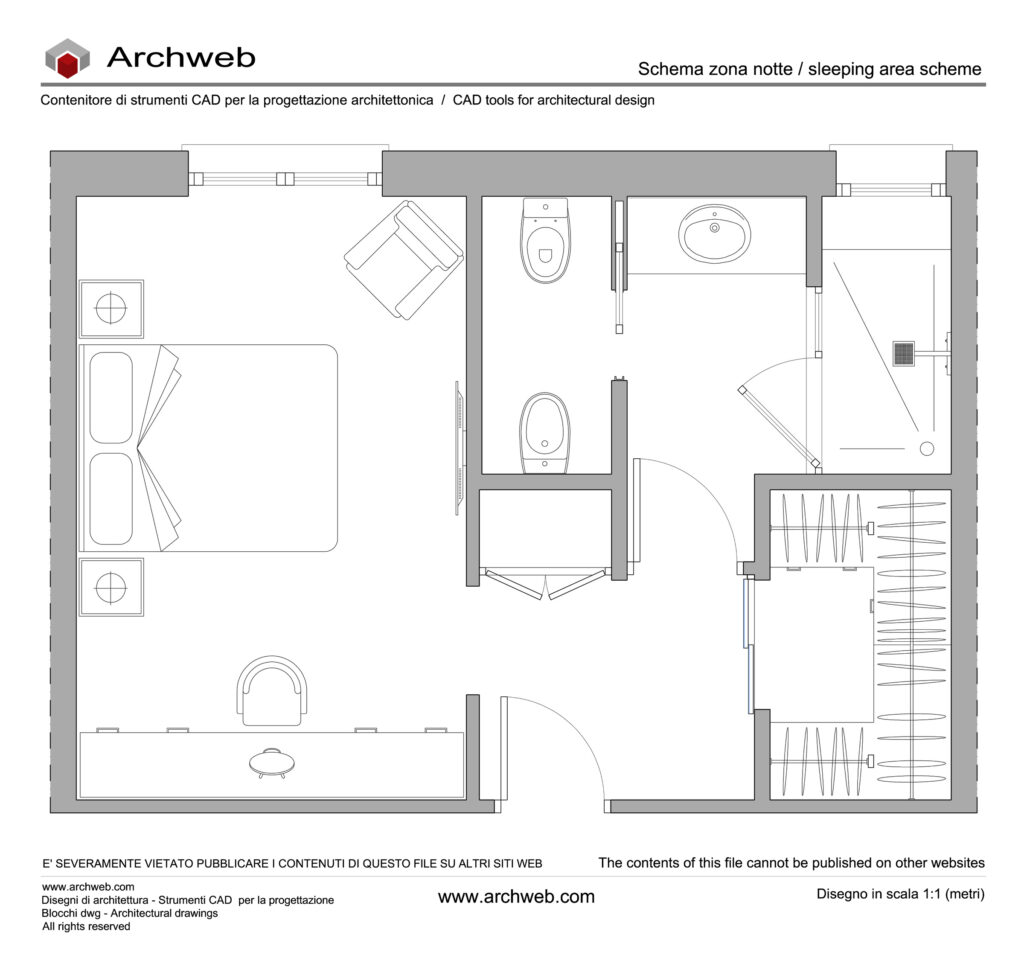

Design scheme of a sleeping area with double bedroom, walk-in closet and bathroom.
Sleeping area: Place the double bed in a central position in the room, possibly against a main wall, preferably the one opposite the door, to have a panoramic view and direct access.
Walk-in closet: The walk-in closet should be located next to the sleeping area, so as to ensure easy access to clothes. Ideally, it should be separated by a wall or a sliding door to optimize space.
Bathroom: the bathroom should be positioned to ensure privacy, away from the bedroom door but still easily accessible. In this solution it has been divided into three functional areas, sink, toilet and shower.
